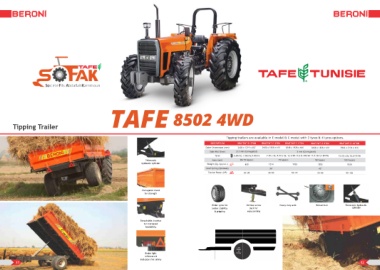

Beroni Beroni
TAFE
8502 4WD
Tipping Trailer
Tipping trailers are available in E model & C model with 2 tyres & 4 tyres options.
DESCRIPTION BRAT2WT-E-2TON BRAT2WT-E-3TON BRAT2WT-E-5TON BRAT2WT-E-9TON BRAT2WT-E-10TON
Outer Dimensions (mm) 2435 x 1219 x 457 2435 x 1828 x 610 3048 x 1828 x 610 3658 x 1828 x 610 3962 x 2134 x 610
Side Wall Sheet 2/3 mm (Corrugated) 3 mm (Corrugated)
Tyres 6.00x16, 7.50x16,9.00x16 7.50 x 16, 9.00 x 16, 12.5/80-15.3 & 400/60-15.5 (14 to 18 PR) 10.00 x 20,15.0/70-18
Telescopic Axle (mm) 65/75 Square 75 Square 90 Square 100 Square
hydraulic cylinder Weight (Kg. Approx.) 600 1014 1180 1553 1820
Leaf Spring (Optional) 36" 42"
Tractor Power (HP) 20~35 30~50 50~70 70~90 90~120
Corrugated sheet
for strength
Wider tyres for Vertical screw Heavy duty axle Robust hub Telescopic hydraulic
better stability jack for cylinder
& gripping easy parking
Detachable drawbar
for increased
loadability
Low
Center
of
Brake light Gravity
reflectors &
indicators for safety
